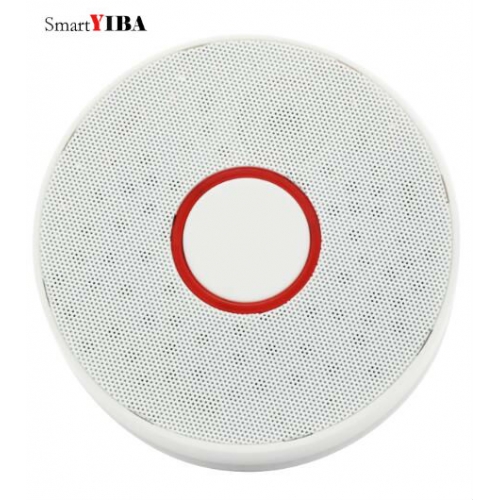

Dūmų ir ugnies jutiklis - signalizacija "Protėjas"

Description:

• Battery-Powered 10 years life
• Wireless Independent smoke sensor
• High Sensitive Fire Alarm Sensor Monitor for Home Security.
• Independent usage
• Photoelectric Smoke Alarm

Introduction:

• Smoke alarm for independent usage.
• The product is a new smoke detector, hereinafter called detector.
• With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function.
• It reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc..

Feature:

• Adopts MCU Auto-Processing Technology
• ten years' battery life sealed
• Wireless Interconnection Alarm (Optional)
• Low-battery warning
• Auto-Reset after trigger
• Infrared Photoelectronic Sensor
• Sound & Flash Alarm & LED indicating Alarm
• SMT Manufacture Technology, Reliable Stability
• Dust-proof, Mothproof and Anti White light interference

Technical parameter:

• Power Supply: 9 V battery sealed
• Static current: < 10 uA
• Alarm current: < 35 mA
• Sensitive level: 2.06 % / ft ± 1.3
• Alarm indication:  Big Area LED flashes in Red
• Alarm Sound:  85 dB / 3 m
• Transmitting Distance: 200 meters (Open)
• Temperature:  -10 ~ 50 degree
• Relative Humidity:  ≤ 95 % RH
• Dimensions:  112 * 32 mm
• Execution standard:  GB4715-2005, En14604, UL217
• Detecting area:  80 at 6 -12 m installation height; 60 at installation height < 6 m

Package:

• 1 pcs smoke sensor
• 1 package of screws
