Diagnostikos adapteris automobiliui "Opel" (OBD II, USB, V1.70)

Support Cars List:

• Compatible vehicles: all series Opel cars (12V only)
• Device fully support all series OPEL Vehicles until 2014, for example, it works perfectly for Opel Astra 2011, 2012 until 2014.

Features:

• Language: English.

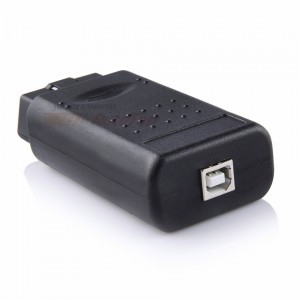

• The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.
• The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.
• Compared to the TECH2, which is the dealers tool (with a 32 MB card+CANdi interface), the price of OP-COM is quite affordable.

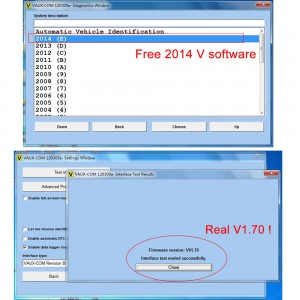

• Free 2014v softwares, Newest V1.70 Firmware!
• Our OPCOM chip set are all using original chips, and most stable version in industry, can diagnose almost all blocks for opel vehicles.

Functions:

• It covers almost all O.pel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
• The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test
• The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
• Since O.pel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
• Fault codes will be shown with all available information:
• Full fault code text description
• Full status information (Present, Not present, Intermittent)
• You can print out, save, or copy the fault codes to any other application.From the fault codes window, you can go directly to the measuring blocks window.
• The program shows you measuring block information on many control module, you can choose anything from the list on your own.
• The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or B-osch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
• You can also run output tests on many controllers.
• PIN6-PIN14
• PIN3-PIN11
• PIN1
• HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
• MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
• SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
• You will get a feedback on the state of the activated output. This will helps you to find the failed.components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.
• You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.
• You will need the vehicle security code, which can be found on the CAR-PASS.
• You can also reset, and program the Service interval reminder on Astra-G, Zafira, Corsa-C, Meriva
• You can code SAB6, and SAB8 airbags with the software.

Note:

this opcom can't support Windows 10, it only can work on Windows XP or Windows 7

Attention for Latest Opcom Software (VAUX-COM_120309a.exe):

• If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well.
• When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully
• If you receive the damaged CD, Please do not leave us bad feedback, contact us we will send you the link to download the softwares
• Never Update Online. Online Updation Will Damage The OP-COM.

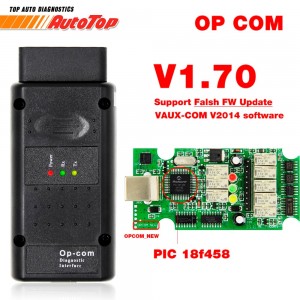

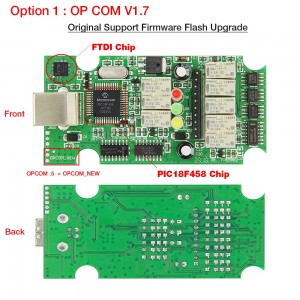

• Our OPCOM is original designed dual-side PCB op-com, more logical and good for heat Dissipation.

Package list:

• 1 x Device
• 1 x USB Cable
• 1 x CD with Software and Drivers
