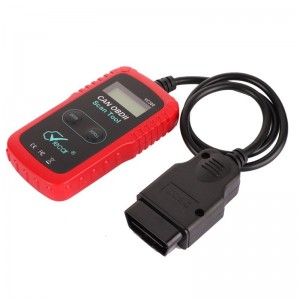

Diagnostikos adapteris automobiliui "Spartuolis" (OBD II, USB)

Product Description

• The code reader supports all OBD II protocols, including the newly-released Controller Area Network (CAN) protocol.
• Though it is small, it is able to retrieve same information as large expensive scanners!
• A small number of gasoline vehicles (1994 and 1995 model year) are the OBD II compliant. To verify if a 1994 or 1995 vehicle with OBD II compliant or not, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles.
• That is, if the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
• For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission.
• Control Information Label must state that the vehicle is OBD II compliant.

Supported OBD-II protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)

Features:

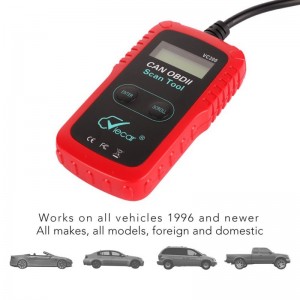

• Work with all vehicles after 1996 that are OBD II compliant (including CAN).
• Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light.
• Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes.
• Review the emission readiness status of OBD monitors.
• Determine the malfunction indicator lamp (MIL) status.
• Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9.
• Easy to use with one plug-in.
• Free CD software with over 7000 DTC definitions.
• No batteries needed-powered via detachable OBD II cable.

Specifications:

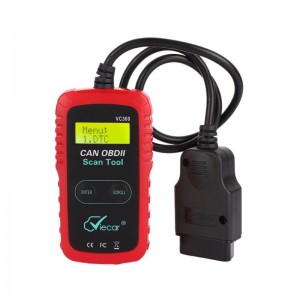

• Display: Backlit LCD, 2-line, 8 characters.
• Operating Temperature: 0 to 50 C (32 to 122 F).
• Storage Temperature: -20 to 70 C (-4 to 158 F).
• Power: 10.0 to 15.5 Volts provided via vehicle battery.
• Dimensions: Length 4.4" (113 mm) Width 2.9" (74 mm) Height 0.83" (21mm).
• Weight: 281 g.

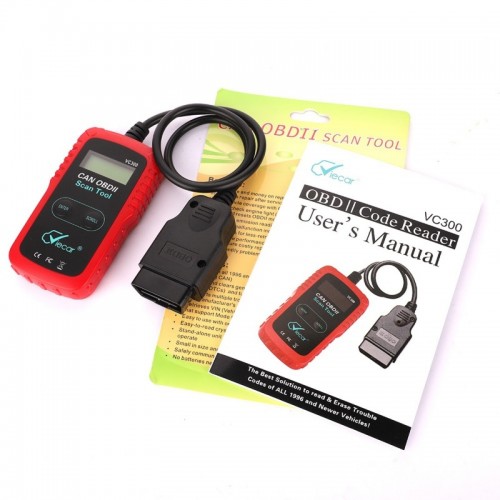

Package Includes:

• 1 x Auto mobile diagnostic
