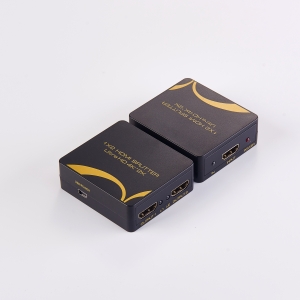

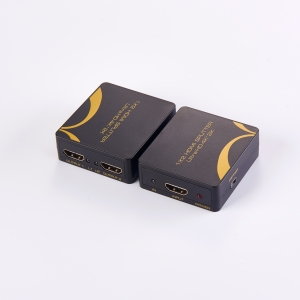

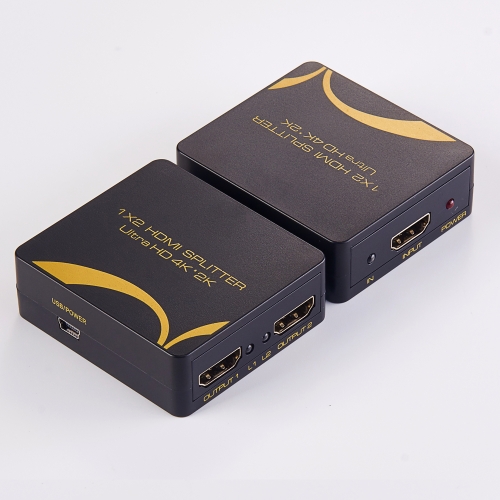

HDMI į 2 HDMI dalintuvas

INTRODUCTION

Dear customer

• Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
• Please keep this manuafor future reference.
• Our series of HDMI converters. switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
• The 1x2 HDMI Splitter use a single HDMI source，accessing to multiple HDMI sinks.
• The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors.
• The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
• Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, schooand corporate training environments.


FEATURES

• One HDMI 1.4 input signasplit to two HDMI 4 sink devices
• HDCP 1.3 protococompliant
• Support deep color 30bit, 36bit
• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
• Digitaaudio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Support signaretiming
• Support input up to 15metres AWG24 HDMI 1.4 standard cable length,
• output up to 25metres AWG24 cable length
• No loss of quality
• Installs in minutes
• Need DC5V/0.2A power supply (from a USB host port or USB chager by the USB cable).

The accessories with the machines：

• One piece of USB cable
• one piece of Manual

Operating and Connecting：

• Connect one cable from HDMI source devices to HDMI Splitter input.
• Connect one cable from each display (monitor or projector) to the HDMI Splitter outputs.
• Connect 5V power supply to the HDMI 1x2 Splitter by USB cable.

SPECIFICATIONS:

• HDMI version: HDMI 1.4
• HDCP version: HDCP1.3
• HDMI resolution: 24/50/60fs/4K*2K/1080p/1080i/720p/576p/576i/480p/480i
• Support video color format: 24bit/deep color 30bit,36bit
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Max bandwidth: 340MHz
• Max baud rate: 10.2Gbps
• Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
• Input/Output DDC signak: 5Volts p-p (TTL)
• Input cable distance: ≤15m AWG24 HDMI 1.4standard cable
• Output cable distance: ≤25m AWG24 HDMI 1.4 standard cable
• Max working current: 200mA
• Power adapter format: Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V/0.2A
• Operatin2g Temperature range: (-15 to +55℃)
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Dimension (x W x H): 60X55X20 (mm)
• Weight: 40g

Notes:

Please use the machine as the instruction listed to keep the long use lifetime of the
machine.

• The machine should be placed at the spot far away from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
• Alparts wilbe free from the strong shake, hit, fall.
• Touching the device with the wet hands is prohibited.
• Please turn the power off when the machines is not used for long time.
• Please do not open the cover and do not touch the inside parts.
• Please use the originafactory power adaptor.

Packaging Details

• Package Weight: 0.080 kg (0.18lb.)
• Package Size: 18 cm x 12 cm x 3 cm (7.09in x 4.72in x 1.18in)
