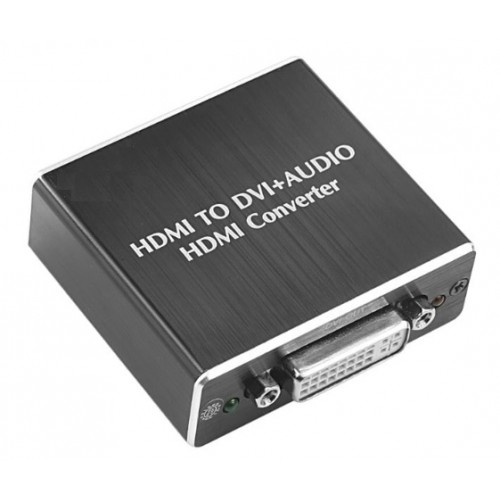

HDMI į DVI ir SPDIF + ausinės keitiklis (1080P)

HDMI to DVI with Audio Output Converterd is used for connecting your hdmi signal sending device such as Blu-ray player/PS4/Apple TV/Laptop/Roku to a DVI-I TV/Monitor/Projector, and output the audio to speaker/amplifier/home cinema system via 3.5mm/coaxial audio port.

Supports PC resolutions up to 1600x1200 (UXGA) and TV resolutions up to 1920x1080 (1080P). When the analog audio output is selected, multi-channel (5.1,7.1) or 2-channel (PCM) digital HDMI audio will be converted to 2-cahannel analog audio. A 3.5mm male to stereo RCA female adapter, When the  SPDIF audio is selected the audio will be at 5.1 unless HDMI audio is PCM, then the SPDIF audio will also remain PCM.

Specification:

• Input: HDMI female
• Video Output: 24+5 DVI-I female
• Audio Output: 3.5mm audio and coaxial audio
• Switch: 2.1 CH / 5.1 CH switch
• Resolution: 1080p / 1080i / 720p / 576p / 579i / 480p
• Video Color Format: 24 bit deep color 30bit 36bit
• Max. bandwidth: 225 MHz
• Max. baud rate: 6.75 Gbps

IMPORTANT: Please make sure that your DVI display is capable of processing the resolution you will be sending from your HDMI device. For example, if your DVI display is only capable of 1080i or 720p and you will be sending signal from an Xbox or PS-3, the default HDMI resolution for these devices is 1080p so you must manually set output HDMI resolution to 1080i or 720p, whichever is compatible with your DVI display. When using a Chromecast dongle, DVI display must be capable of processing 1080p as this device is not capable of setting to 1080i or 720p and its default output resolution is 1080p.

How to use it:

• Provides power with the included power adapter
• Connect HDMI laptop (or other HDMI signal sending device) to the box via HDMI cable (HDMI cable not included in the package)
• Connect box to DVI-I monitor via DVI cable (DVI cable not included in the package)
• Connect box to amplifier via audio calbe/coaxial cable (cable not included in the package)

NOTE:

• Coaxial format is dependent upon the embedded digital audio in the HDMI stream. The Coaxial receiver must be able to recognize the input Coaxial format.
• Analog audio (3.5mm Jack) only support 2 channels, there is no output when the source is AC3/DTS multichannel audio.
• If your TV not supports Dolby Digital or DTS audio decoding, then you will add audio decoder or amplifier.

Package:

• 1 x HDMI to DVI-I Converter
• 1 x Power Adapter
• 1 x User Manual
