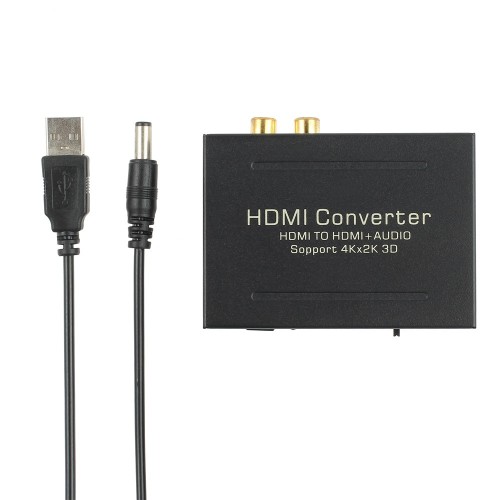

HDMI į HDMI ir SPDIF + RCA audio keitiklis (3D 4K 2160P)

Features:

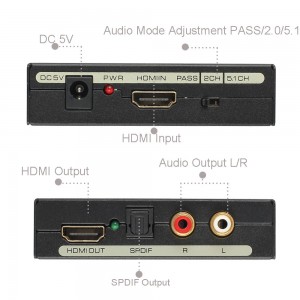

• Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.
• Audio output supports: SPDIF + R/L analog Audio Output.
• Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
• HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
• LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.

Specification:

• HDCP Version: HDCP 1.4
• HDMI Version.: HDMI 1.4b
• HDMI resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
• Support video color format: 24bits/deep color 30bit,36bit
• Audio output: L/R+SPDIF
• Max bandwidth: 340MHz
• Max baud rate: 10.2Gbps
• Input/ Output TMDS signal: 0.5-1.5Volts p-p(TTL)
• Input/ Output DDC signal: 5Volts p-p(TTL)
• Input cable distance: <=7m AWG26 standard cable HDMI
• Output cable distance: <=8m AWG26 standard cable HDMI
• Max working current: 500mA
• Power adapter format.: input: AC(50/60Hz)100V-240V;Output: DC5V/1A
• Operating temperature range: (-15 to +55°C)
• Operating humidity range: 5 to 90% RH(NO Condensation)

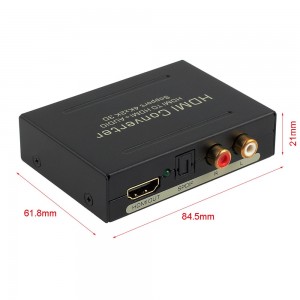

• Dimension (LxWxH): 84.5 x 61.8 x 21(mm)
• Weight:135g

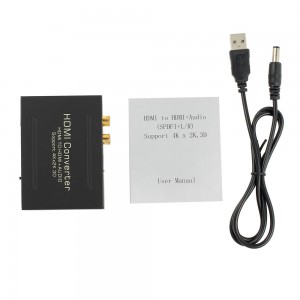

Package List:

• 1 x Extractor
• 1 x 5V USB Power
• 1 x User Manual
