5 HDMI į vieną HDMI paskirstytojas (1080P, distacinis valdymas)

Features

• This is a kind of high performance mini HDMI Switcher.
• It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc,
• which has not only key-press-switching function,
• but also has IR remote control and intelligent function.
• Support HDMI 1.3b.
• Full HD 1080P.
• Support 12-bit deep color.
• High performance up to 2.5Gbps.

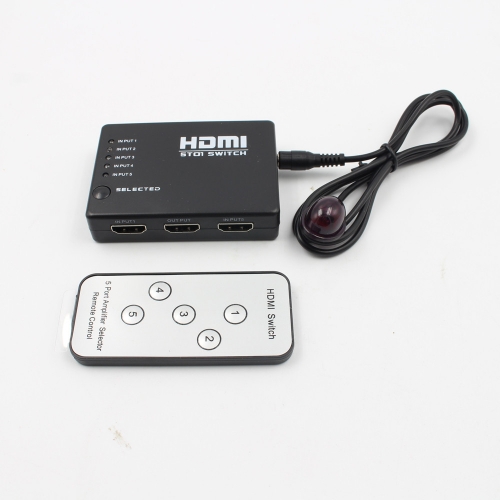

• IR extender receiver (included).
• IR remote control (included).
• No power needed (If the input equipment is standard, otherwise power needed).
• Multifunction on switching: intelligent or mechanical.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS Digital, Dolby Digital.
• It is compatible well for HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc.
• HDCP pass-through.

Specifications

• Input DDC Signal: 5 volts p-p(TTL)
• Output Video: HDMI 1.3b
• Maximum Single Link Range: 1920 * 1080p
• Vertical Frequency Range: 50/60Hz
• Video Amplifier Bandwidth: 2.5Gbps/250MHz
• Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Operating Temperature: 0¡æ to + 70¡æ
• Operating Humidity: 10% to 85% RH
• Storage Temperature: -10¡æ to + 80¡æ
• Storage Humidity: 5% to 90% RH
• Consumption(Max): 5W
• Item size: 8 * 5.8 * 1.8cm
• Item weight: 90g

Package Included:

• Video HDMI Switch Switcher
• IR Remote
