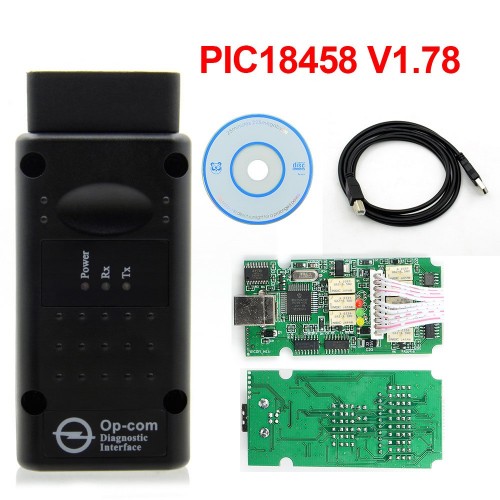

Diagnostikos adapteris automobiliui "Opel 3" (OBD II, USB, V1.78)

Informacija anglų kalba

Description:

• It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
• The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
• The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
• Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
• Fault codes will be shown with all available information.

Features:

• This is a special PC Based diagnostic interface especially for OPEL.
• PCB Board Chip: PIC18F458 and FTDI Chip, NEW NEC Relay.
• Firmware V1.78 Software V2014/120309A.
• Language: English Only.

Personal computer

• Windows System: Win XP/WIN 7 32bits ONLY (close anti-virus program)
• Please do not update online, or device will damaged broken.
• We have no test on win 7 or win 10, so we can not sure if software can compatible on those system or not.

Full Fault Code Text Description:

• Full status information (Present, Not present, Intermittent)
• You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
• The program shows you measuring block information on many control module, you can choose anything from the list on your own.
• The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

• PIN6-PIN14
• PIN3-PIN11
• PIN1
• HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
• MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
• SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

Package list:

• 1 x Device
• 1 x USB Cable
• 1 x CD
